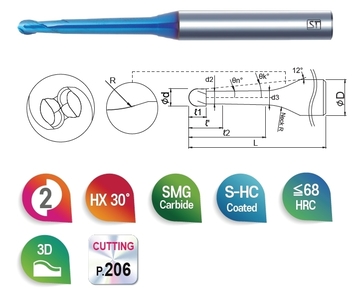

2BTH 2F Ball Endmill-Tapered Neck
Features
  • Tapered neck for vibration-reduced cutting
  • Extended neck style for long reach applications
  • Greater rigidity and reduced chattering through optimized geometry
  • Only for Dry cutting
Tolerance
Cutting Dia. d≤6: 0/-0.01
d>6: 0/-0.015
Radius R≤0.25: 0/-0.005
R>0.25: 0/-0.01
Inquiry

Recommended workpiece Material

◎:First choice ○:Alternative choice △:Limited choice
Carbon Steel/Alloy Steel(up to 350 HB) Stainless Steel(up to 240 HB) Cast lron(up to 260 HB) Prehardened Steel(up to 50 HRc) Hardened Steel(45 to 55 HRc) Super Hardened Steel(55 to 68 HRc) TitaniumAlloy CopperAlloy AluminumAlloy Resin &Plastics Graphite
○ △ ○   ○ ◎

가로로 스크롤하세요.



(Unit: mm)


EDP No
Cutting Dia X Radius of Ball Nose
d X R
Taper Angle
θn
Length of Cut
L1
Length of Reach
L2
Overall Length
L
Shank Dia
D
2BTH 050 040 400 0.5 X R0.25 0.4 0.35 4 50 4
2BTH 050 040 600 0.5 X R0.25 0.4 0.35 6 50 4
2BTH 050 090 1200 0.5 X R0.25 0.9 0.35 12 50 4
2BTH 050 090 600 0.5 X R0.25 0.9 0.35 6 50 4
2BTH 050 090 800 0.5 X R0.25 0.9 0.35 8 50 4
2BTH 060 040 200 0.6 X R0.3 0.4 0.40 2 50 4
2BTH 060 040 400 0.6 X R0.3 0.4 0.40 4 50 4
2BTH 060 040 600 0.6 X R0.3 0.4 0.40 6 50 4
2BTH 060 040 800 0.6 X R0.3 0.4 0.40 8 50 4
2BTH 060 040 1000 0.6 X R0.3 0.4 0.40 10 50 4
2BTH 060 040 1200 0.6 X R0.3 0.4 0.40 12 50 4
2BTH 060 040 1500 0.6 X R0.3 0.4 0.40 15 50 4
2BTH 060 090 400 0.6 X R0.3 0.9 0.40 4 50 4
2BTH 060 090 600 0.6 X R0.3 0.9 0.40 6 50 4
2BTH 060 090 800 0.6 X R0.3 0.9 0.40 8 50 4
2BTH 060 090 1000 0.6 X R0.3 0.9 0.40 10 50 4
2BTH 060 090 1200 0.6 X R0.3 0.9 0.40 12 55 4
2BTH 060 090 1500 0.6 X R0.3 0.9 0.40 15 55 4
2BTH 060 140 400 0.6 X R0.3 1.4 0.40 4 50 4
2BTH 060 140 500 0.6 X R0.3 1.4 0.40 5 50 4
2BTH 060 140 600 0.6 X R0.3 1.4 0.40 6 50 4
2BTH 060 140 800 0.6 X R0.3 1.4 0.40 8 50 4
2BTH 060 140 1000 0.6 X R0.3 1.4 0.40 10 50 4
2BTH 060 140 2000 0.6 X R0.3 1.4 0.40 20 60 4
2BTH 060 290 600 0.6 X R0.3 2.9 0.40 6 50 4
2BTH 060 290 800 0.6 X R0.3 2.9 0.40 8 50 4
2BTH 060 290 1200 0.6 X R0.3 2.9 0.40 12 55 4
2BTH 080 040 400 0.8 X R0.4 0.4 0.50 4 50 4
2BTH 080 040 600 0.8 X R0.4 0.4 0.50 6 50 4
2BTH 080 040 800 0.8 X R0.4 0.4 0.50 8 50 4
2BTH 080 040 1200 0.8 X R0.4 0.4 0.50 12 55 4
2BTH 080 090 800 0.8 X R0.4 0.9 0.50 8 50 4
2BTH 080 090 1200 0.8 X R0.4 0.9 0.50 12 55 4
2BTH 080 090 1600 0.8 X R0.4 0.9 0.50 16 55 4
2BTH 100 040 600 1.0 X R0.5 0.4 0.80 6 50 6
2BTH 100 040 800 1.0 X R0.5 0.4 0.80 8 55 6
2BTH 100 040 1000 1.0 X R0.5 0.4 0.80 10 55 6
2BTH 100 040 1500 1.0 X R0.5 0.4 0.80 15 60 6
2BTH 100 040 2000 1.0 X R0.5 0.4 0.80 20 65 6
2BTH 100 040 2500 1.0 X R0.5 0.4 0.80 25 70 6
2BTH 100 040 3000 1.0 X R0.5 0.4 0.80 30 75 6
2BTH 100 040 5000 1.0 X R0.5 0.4 0.80 50 95 6
2BTH 100 040 7000 1.0 X R0.5 0.4 0.80 70 115 6
2BTH 100 090 600 1.0 X R0.5 0.9 0.80 6 50 6
2BTH 100 090 1000 1.0 X R0.5 0.9 0.80 10 55 6
2BTH 100 090 1500 1.0 X R0.5 0.9 0.80 15 60 6
2BTH 100 090 1600 1.0 X R0.5 0.9 0.80 16 60 6
2BTH 100 090 2000 1.0 X R0.5 0.9 0.80 20 65 6
2BTH 100 090 2500 1.0 X R0.5 0.9 0.80 25 70 6
2BTH 100 090 3000 1.0 X R0.5 0.9 0.80 30 75 6
2BTH 100 090 3500 1.0 X R0.5 0.9 0.80 35 80 6
2BTH 100 090 4000 1.0 X R0.5 0.9 0.80 40 85 6
2BTH 100 090 5000 1.0 X R0.5 0.9 0.80 50 95 6
2BTH 100 090 6000 1.0 X R0.5 0.9 0.80 60 105 6
2BTH 100 090 7000 1.0 X R0.5 0.9 0.80 70 115 6
2BTH 100 140 600 1.0 X R0.5 1.4 0.80 6 50 6
2BTH 100 140 1200 1.0 X R0.5 1.4 0.80 12 60 6
2BTH 100 140 1600 1.0 X R0.5 1.4 0.80 16 60 6
2BTH 100 140 2000 1.0 X R0.5 1.4 0.80 20 65 6
2BTH 100 140 2200 1.0 X R0.5 1.4 0.80 22 70 6
2BTH 100 140 2500 1.0 X R0.5 1.4 0.80 25 70 6
2BTH 100 140 5000 1.0 X R0.5 1.4 0.80 50 95 6
2BTH 100 290 1000 1.0 X R0.5 2.9 0.80 10 55 6
2BTH 100 290 1500 1.0 X R0.5 2.9 0.80 15 60 6
2BTH 100 290 2000 1.0 X R0.5 2.9 0.80 20 65 6
2BTH 100 290 3000 1.0 X R0.5 2.9 0.80 30 75 6
2BTH 150 040 800 1.5 X R0.75 0.4 1.35 8 55 6
2BTH 150 040 1000 1.5 X R0.75 0.4 1.35 10 55 6
2BTH 150 040 1200 1.5 X R0.75 0.4 1.35 12 55 6
2BTH 150 040 3000 1.5 X R0.75 0.4 1.35 30 75 6
2BTH 150 090 1000 1.5 X R0.75 0.9 1.35 10 55 6
2BTH 150 090 1500 1.5 X R0.75 0.9 1.35 15 60 6
2BTH 150 090 2000 1.5 X R0.75 0.9 1.35 20 65 6
2BTH 150 090 3000 1.5 X R0.75 0.9 1.35 30 75 6
2BTH 150 140 1000 1.5 X R0.75 1.4 1.35 10 55 6
2BTH 150 140 2000 1.5 X R0.75 1.4 1.35 20 65 6
2BTH 150 140 3000 1.5 X R0.75 1.4 1.35 30 75 6
2BTH 150 140 4000 1.5 X R0.75 1.4 1.35 40 85 6
2BTH 150 140 5000 1.5 X R0.75 1.4 1.35 50 95 6
2BTH 150 290 2000 1.5 X R0.75 2.9 1.35 20 65 6
2BTH 200 040 800 2.0 X R1.0 0.4 1.70 8 50 6
2BTH 200 040 1200 2.0 X R1.0 0.4 1.70 12 55 6
2BTH 200 040 1600 2.0 X R1.0 0.4 1.70 16 60 6
2BTH 200 040 2000 2.0 X R1.0 0.4 1.70 20 65 6
2BTH 200 040 2500 2.0 X R1.0 0.4 1.70 25 65 6
2BTH 200 040 3000 2.0 X R1.0 0.4 1.70 30 70 6
2BTH 200 040 4000 2.0 X R1.0 0.4 1.70 40 80 6
2BTH 200 040 8000 2.0 X R1.0 0.4 1.70 80 120 6
2BTH 200 090 1200 2.0 X R1.0 0.9 1.70 12 55 6
2BTH 200 090 1600 2.0 X R1.0 0.9 1.70 16 60 6
2BTH 200 090 2000 2.0 X R1.0 0.9 1.70 20 65 6
2BTH 200 090 2500 2.0 X R1.0 0.9 1.70 25 65 6
2BTH 200 090 3000 2.0 X R1.0 0.9 1.70 30 70 6
2BTH 200 090 3500 2.0 X R1.0 0.9 1.70 35 75 6
2BTH 200 090 4000 2.0 X R1.0 0.9 1.70 40 80 6
2BTH 200 090 5000 2.0 X R1.0 0.9 1.70 50 90 6
2BTH 200 090 6000 2.0 X R1.0 0.9 1.70 60 100 6
2BTH 200 090 7000 2.0 X R1.0 0.9 1.70 70 110 6
2BTH 200 140 1000 2.0 X R1.0 1.4 1.70 10 55 6
2BTH 200 140 1600 2.0 X R1.0 1.4 1.70 16 60 6
2BTH 200 140 2000 2.0 X R1.0 1.4 1.70 20 65 6
2BTH 200 140 2200 2.0 X R1.0 1.4 1.70 22 65 6
2BTH 200 140 2500 2.0 X R1.0 1.4 1.70 25 65 6
2BTH 200 140 3000 2.0 X R1.0 1.4 1.70 30 70 6
2BTH 200 140 4000 2.0 X R1.0 1.4 1.70 40 80 6
2BTH 200 290 1200 2.0 X R1.0 2.9 1.70 12 55 6
2BTH 200 290 1500 2.0 X R1.0 2.9 1.70 15 60 6
2BTH 200 290 2000 2.0 X R1.0 2.9 1.70 20 65 6
2BTH 300 040 800 3.0 X R1.5 0.4 2.50 8 50 6
2BTH 300 040 1600 3.0 X R1.5 0.4 2.50 16 55 6
2BTH 300 040 2000 3.0 X R1.5 0.4 2.50 20 60 6
2BTH 300 040 3000 3.0 X R1.5 0.4 2.50 30 70 6
2BTH 300 040 4000 3.0 X R1.5 0.4 2.50 40 80 6
2BTH 300 040 5000 3.0 X R1.5 0.4 2.50 50 90 6
2BTH 300 040 8000 3.0 X R1.5 0.4 2.50 80 120 6
2BTH 300 090 1500 3.0 X R1.5 0.9 2.50 15 55 6
2BTH 300 090 2000 3.0 X R1.5 0.9 2.50 20 60 6
2BTH 300 090 3000 3.0 X R1.5 0.9 2.50 30 70 6
2BTH 300 090 3500 3.0 X R1.5 0.9 2.50 35 75 6
2BTH 300 090 4000 3.0 X R1.5 0.9 2.50 40 80 6
2BTH 300 090 5000 3.0 X R1.5 0.9 2.50 50 90 6
2BTH 300 090 6000 3.0 X R1.5 0.9 2.50 60 100 6
2BTH 300 090 7000 3.0 X R1.5 0.9 2.50 70 110 6
2BTH 300 090 9000 3.0 X R1.5 0.9 2.50 90 130 6
2BTH 300 140 3000 3.0 X R1.5 1.4 2.50 30 70 6
2BTH 300 140 4000 3.0 X R1.5 1.4 2.50 40 80 6
2BTH 300 140 5000 3.0 X R1.5 1.4 2.50 50 90 6
2BTH 400 040 6000 4.0 X R2.0 0.4 8.00 60 110 8
2BTH 400 090 2000 4.0 X R2.0 0.9 8.00 20 65 8
2BTH 400 090 3000 4.0 X R2.0 0.9 8.00 30 80 8
2BTH 400 090 3500 4.0 X R2.0 0.9 8.00 35 85 8
2BTH 400 090 4000 4.0 X R2.0 0.9 8.00 40 90 8
2BTH 400 090 5000 4.0 X R2.0 0.9 8.00 50 100 8
2BTH 400 090 6000 4.0 X R2.0 0.9 8.00 60 110 8
2BTH 400 140 4500 4.0 X R2.0 1.4 8.00 45 95 8
2BTH 400 140 8000 4.0 X R2.0 1.4 8.00 80 130 8
2BTH 400 290 2500 4.0 X R2.0 2.9 8.00 25 75 8
