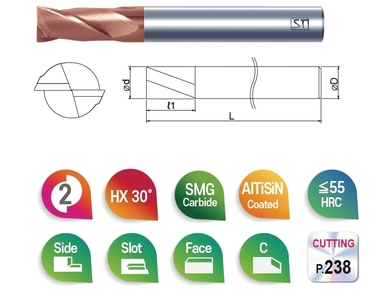

- 2SR 2F Square End-Regular
- Features
- Greater rigidity and reduced chattering through optimized geometry
- For Dry cutting and Wet cutting
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ○ | △ | ○ | ○ | ◎ | ○ | ○ | △ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|
| 2SR 020 030 S4 | 0.2 | 0.3 | 45 | 4 |
| 2SR 030 050 S4 | 0.3 | 0.5 | 45 | 4 |
| 2SR 040 080 S4 | 0.4 | 0.8 | 45 | 4 |
| 2SR 050 100 S4 | 0.5 | 1.0 | 45 | 4 |
| 2SR 060 120 S4 | 0.6 | 1.2 | 45 | 4 |
| 2SR 070 140 S4 | 0.7 | 1.4 | 45 | 4 |
| 2SR 080 160 S4 | 0.8 | 1.6 | 45 | 4 |
| 2SR 100 250 S4 | 1.0 | 2.5 | 45 | 4 |
| 2SR 100 250 S6 | 1.0 | 2.5 | 45 | 6 |
| 2SR 120 300 S4 | 1.2 | 3.0 | 45 | 4 |
| 2SR 150 400 S4 | 1.5 | 4.0 | 45 | 4 |
| 2SR 150 400 S6 | 1.5 | 4.0 | 45 | 6 |
| 2SR 200 600 S4 | 2.0 | 6.0 | 45 | 4 |
| 2SR 200 600 S6 | 2.0 | 6.0 | 45 | 6 |
| 2SR 250 800 S4 | 2.5 | 8.0 | 45 | 4 |
| 2SR 250 800 S6 | 2.5 | 8.0 | 45 | 6 |
| 2SR 300 800 S4 | 3.0 | 8.0 | 45 | 4 |
| 2SR 300 800 S6 | 3.0 | 8.0 | 45 | 6 |
| 2SR 350 800 S4 | 3.5 | 8.0 | 45 | 4 |
| 2SR 400 1000 S4 | 4.0 | 10.0 | 45 | 4 |
| 2SR 400 1000 S6 | 4.0 | 10.0 | 45 | 6 |
| 2SR 450 1000 S6 | 4.5 | 10.0 | 45 | 6 |
| 2SR 500 1300 S6 | 5.0 | 13.0 | 50 | 6 |
| 2SR 550 1300 S6 | 5.5 | 13.0 | 50 | 6 |
| 2SR 600 1500 S6 | 6.0 | 15.0 | 50 | 6 |
| 2SR 650 1500 S8 | 6.5 | 15.0 | 60 | 8 |
| 2SR 700 1600 S8 | 7.0 | 16.0 | 60 | 8 |
| 2SR 750 1600 S8 | 7.5 | 16.0 | 60 | 8 |
| 2SR 800 1900 S8 | 8.0 | 19.0 | 60 | 8 |
| 2SR 850 1900 S10 | 8.5 | 19.0 | 70 | 10 |
| 2SR 900 1900 S10 | 9.0 | 19.0 | 70 | 10 |
| 2SR 950 1900 S10 | 9.5 | 19.0 | 70 | 10 |
| 2SR 1000 2200 S10 | 10.0 | 22.0 | 70 | 10 |
| 2SR 1050 2200 S12 | 10.5 | 22.0 | 75 | 12 |
| 2SR 1100 2200 S12 | 11.0 | 22.0 | 75 | 12 |
| 2SR 1200 2600 S12 | 12.0 | 26.0 | 75 | 12 |
| 2SR 1400 2600 S14 | 14.0 | 26.0 | 80 | 14 |
| 2SR 1600 3500 S16 | 16.0 | 35.0 | 100 | 16 |
| 2SR 2000 4000 S20 | 20.0 | 40.0 | 100 | 20 |
