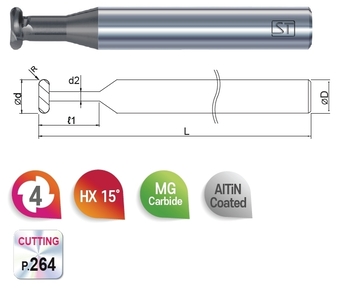

- 4RTCC 4F Round T Slot Cutter-Coating
- Features
- High cutting edge rigidity with smaller spiral angle
- Application of coatings with excellent wear-resistance
- For Dry cutting and Wey cutting
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ◎ | ◎ | ◎ | ○ | ○ | ◎ | ◎ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Conner R
CR |
Neck Dia.
d1 |
Length of Reach
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|---|---|
| 4RTCC 600 050 | 6.0 | 0.5 | 3.0 | 6 | 54 | 6 |
| 4RTCC 600 075 | 6.0 | 0.75 | 3.0 | 6 | 54 | 6 |
| 4RTCC 600 100 | 6.0 | 1.0 | 3.0 | 6 | 54 | 6 |
| 4RTCC 800 100 | 8.0 | 1.0 | 4.0 | 8 | 54 | 8 |
| 4RTCC 800 150 | 8.0 | 1.5 | 4.0 | 8 | 60 | 8 |
| 4RTCC 1000 200 | 10.0 | 2.0 | 4.5 | 10 | 70 | 10 |
