- 2NCDHR 2F NC Drill for Multi Purpose
- Features
- Drill & countersink with one tool
- HR coating enables cutting low-speed/low-hardness materials~high-speed/high-hardness materials and heat resistant materials in various cutting condition and environments
- HR coating has high toughness, improving chipping resistance at interrupted and low speeds
- For Dry cutting and Wet cutting
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ○ | ◎ | ○ | ◎ | ◎ | ○ | ◎ | ○ |
가로로 스크롤하세요

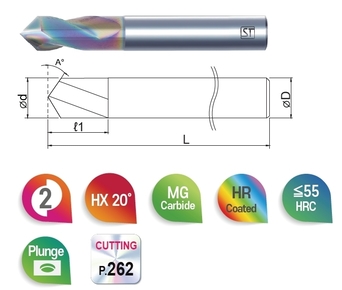

(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Angle
A[˚] |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|---|
| 2NCDHR 300 1000 | 3.0 | 10 | 45 | 45 | 3 |
| 2NCDHR 400 1200 | 4.0 | 12 | 45 | 45 | 4 |
| 2NCDHR 600 1500 | 6.0 | 15 | 45 | 50 | 6 |
| 2NCDHR 800 2000 | 8.0 | 20 | 45 | 60 | 8 |
| 2NCDHR 1000 2200 | 10.0 | 22 | 45 | 70 | 10 |
| 2NCDHR 1200 2400 | 12.0 | 24 | 45 | 80 | 12 |
