- 2BG 2F Ball End for Graphite
- Features
- Greater rigidity and reduced chattering through optimized geometry
- AlTiN coating for improved wear resistance
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015Radius R≤0.25: 0/-0.005
R>0.25: 0/-0.01
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| △ | △ | △ | △ | △ | ◎ |
가로로 스크롤하세요
(Unit: mm)
|

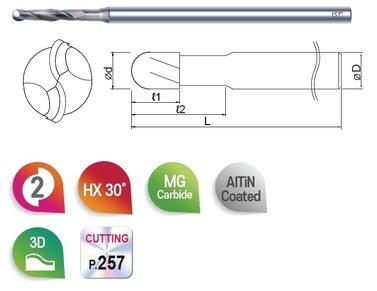

EDP No.
|
Cutting Dia X Radius of Ball Nose d X R
|
Length of Cut
L1 |
Length of Reach
L2 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|---|
| 2BG 050 200 50 | 0.5 X R0.25 | 2 | - | 50 | 4 |
| 2BG 050 500 50 | 0.5 X R0.25 | 2 | 5 | 50 | 4 |
| 2BG 100 500 60 | 1.0 X R0.5 | 5 | - | 60 | 4 |
| 2BG 100 1000 60 | 1.0 X R0.5 | 5 | 10 | 60 | 4 |
| 2BG 100 1500 60 | 1.0 X R0.5 | 5 | 15 | 60 | 4 |
| 2BG 100 2000 80 | 1.0 X R0.5 | 5 | 20 | 80 | 4 |
| 2BG 100 2500 80 | 1.0 X R0.5 | 5 | 25 | 80 | 4 |
| 2BG 150 1000 60 | 1.5 X R0.75 | 10 | - | 60 | 4 |
| 2BG 150 1500 60 | 1.5 X R0.75 | 10 | 15 | 60 | 4 |
| 2BG 150 2000 60 | 1.5 X R0.75 | 10 | 20 | 60 | 4 |
| 2BG 200 1000 60 | 2.0 X R1.0 | 10 | - | 60 | 4 |
| 2BG 200 2000 60 | 2.0 X R1.0 | 10 | 20 | 60 | 4 |
| 2BG 200 3000 80 | 2.0 X R1.0 | 10 | 30 | 80 | 4 |
| 2BG 200 3000 100 | 2.0 X R1.0 | 10 | 30 | 100 | 4 |
| 2BG 200 4000 80 | 2.0 X R1.0 | 10 | 40 | 80 | 4 |
| 2BG 200 4000 100 | 2.0 X R1.0 | 10 | 40 | 100 | 4 |
| 2BG 250 2000 70 | 2.5 X R1.25 | 10 | 20 | 70 | 4 |
| 2BG 300 2000 70 | 3.0 X R1.5 | 10 | 20 | 70 | 4 |
| 2BG 300 3000 80 | 3.0 X R1.5 | 10 | 30 | 80 | 4 |
| 2BG 400 2000 80 | 4.0 X R2.0 | 20 | - | 80 | 4 |
| 2BG 400 2000 100 | 4.0 X R2.0 | 20 | - | 100 | 4 |
| 2BG 400 2000 130 | 4.0 X R2.0 | 20 | - | 130 | 4 |
| 2BG 500 2500 100 | 5.0 X R2.5 | 25 | - | 100 | 6 |
| 2BG 600 3000 80 | 6.0 X R3.0 | 30 | - | 80 | 6 |
| 2BG 600 3000 100 | 6.0 X R3.0 | 30 | - | 100 | 6 |
| 2BG 600 4000 150 | 6.0 X R3.0 | 40 | - | 150 | 6 |
| 2BG 800 4500 120 | 8.0 X R4.0 | 45 | - | 120 | 8 |
| 2BG 800 4500 150 | 8.0 X R4.0 | 45 | - | 150 | 8 |
| 2BG 1000 5000 120 | 10.0 X R5.0 | 50 | - | 120 | 10 |
| 2BG 1000 5000 150 | 10.0 X R5.0 | 50 | - | 150 | 10 |
| 2BG 1200 5000 130 | 12.0 X R6.0 | 50 | - | 130 | 12 |
| 2BG 1200 5000 150 | 12.0 X R6.0 | 50 | - | 150 | 12 |
