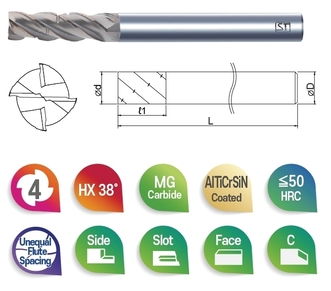

- 4SRR 4F Square Semi-finishing End-Economic
- Features
- Chip break and unequal divided flute increase tool life and enable stable cutting
- Greater rigidity and reduced chattering through optimized geometry For roughing and semi-roughing
- For Dry cutting and Wet cutting
- Tolerance
Cutting Dia. d≤6 : 0/-0.01
d>6 : 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel (up to 350 HB) |
Stainless Steel (up to 240 HB) |
Cast lron (up to 260 HB) |
Prehardened Steel (up to 50 HRc) |
Hardened Steel (45 to 55 HRc) |
Super Hardened Steel (55 to 68 HRc) |
Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ◎ | △ | ◎ | ◎ | ○ | ○ | △ |
가로로 스크롤하세요
(Unit: mm)
가로로 스크롤하세요.
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Overall Length L |
Shank Dia
D |
|---|---|---|---|---|
| 4SRR 600 2000 S6 | 6.0 | 20 | 60 | 6 |
| 4SRR 800 2400 S8 | 8.0 | 24 | 65 | 8 |
| 4SRR 1000 3000 S10 | 10.0 | 30 | 80 | 10 |
| 4SRR 1200 3600 S12 | 12.0 | 36 | 82 | 12 |
