- 4CLH

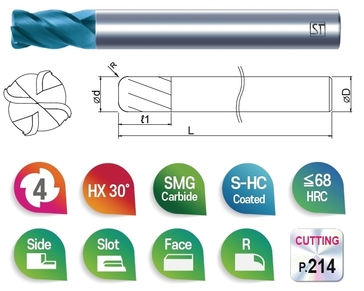

4F Corner Radius Long for Super Hardened Steels
- Features
- Greater rigidity and reduced chattering through optimized geometry
- Cutting geometry specifically engineered for hardened steels
- Only for Dry cutting
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015Corner Radius ±0.01
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ○ | △ | ○ | ○ | ◎ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Cutting Dia X Corner R
d X R |
Length of Cut
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|
| 4CLH 150 R020 45 | 1.5 X R0.2 | 4 | 45 | 4 |
| 4CLH 150 R030 45 | 1.5 X R0.3 | 4 | 45 | 4 |
| 4CLH 200 R020 45 | 2.0 X R0.2 | 6 | 45 | 4 |
| 4CLH 200 R030 45 | 2.0 X R0.3 | 6 | 45 | 4 |
| 4CLH 200 R050 45 | 2.0 X R0.5 | 6 | 45 | 4 |
| 4CLH 300 R020 60 | 3.0 X R0.2 | 8 | 60 | 6 |
| 4CLH 300 R030 60 | 3.0 X R0.3 | 8 | 60 | 6 |
| 4CLH 300 R050 60 | 3.0 X R0.5 | 8 | 60 | 6 |
| 4CLH 400 R020 60 | 4.0 X R0.2 | 11 | 60 | 6 |
| 4CLH 400 R030 60 | 4.0 X R0.3 | 11 | 60 | 6 |
| 4CLH 400 R050 S4 60 | 4.0 X R0.5 | 11 | 60 | 4 |
| 4CLH 400 R050 60 | 4.0 X R0.5 | 11 | 60 | 6 |
| 4CLH 400 R100 60 | 4.0 X R1.0 | 11 | 60 | 6 |
| 4CLH 500 R050 60 | 5.0 X R0.5 | 11 | 60 | 6 |
| 4CLH 600 R020 70 | 6.0 X R0.2 | 15 | 70 | 6 |
| 4CLH 600 R030 70 | 6.0 X R0.3 | 15 | 70 | 6 |
| 4CLH 600 R050 70 | 6.0 X R0.5 | 15 | 70 | 6 |
| 4CLH 600 R050 100 | 6.0 X R0.5 | 15 | 100 | 6 |
| 4CLH 600 R100 70 | 6.0 X R1.0 | 15 | 70 | 6 |
| 4CLH 600 R150 70 | 6.0 X R1.5 | 15 | 70 | 6 |
| 4CLH 800 R020 80 | 8.0 X R0.2 | 19 | 80 | 8 |
| 4CLH 800 R030 80 | 8.0 X R0.3 | 19 | 80 | 8 |
| 4CLH 800 R050 60 | 8.0 X R0.5 | 19 | 60 | 8 |
| 4CLH 800 R050 80 | 8.0 X R0.5 | 19 | 80 | 8 |
| 4CLH 800 R050 100 | 8.0 X R0.5 | 19 | 100 | 8 |
| 4CLH 800 R100 60 | 8.0 X R1.0 | 19 | 60 | 8 |
| 4CLH 800 R100 80 | 8.0 X R1.0 | 19 | 80 | 8 |
| 4CLH 1000 R050 80 | 10.0 X R0.5 | 22 | 80 | 10 |
| 4CLH 1000 R050 100 | 10.0 X R0.5 | 22 | 100 | 10 |
| 4CLH 1000 R100 80 | 10.0 X R1.0 | 22 | 80 | 10 |
| 4CLH 1000 R150 80 | 10.0 X R1.5 | 22 | 80 | 10 |
| 4CLH 1200 R050 80 | 12.0 X R0.5 | 26 | 80 | 12 |
| 4CLH 1200 R100 80 | 12.0 X R1.0 | 26 | 80 | 12 |
| 4CLH 1200 R200 80 | 12.0 X R2.0 | 26 | 80 | 12 |
가로로 스크롤하세요.
