- 4SHH

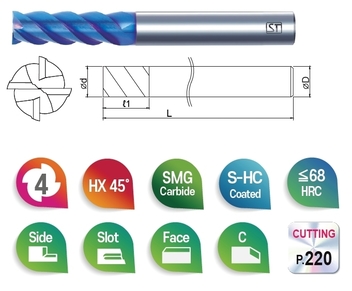

4F Square End for Super Hardened Steels(H/X45")
- Features
- Suitable for heavy cutting with Helix 45"
- Flute design to prevent chipping
- Greater rigidity and reduced chattering through optimized geometry
- Cutting geometry specifically engineered for super hardened steels
- Only for Dry cutting
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ○ | △ | ○ | ○ | ◎ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|
| 4SHH 100 250 S6 | 1.0 | 2.5 | 40 | 6 |
| 4SHH 100 500 S6 | 1.0 | 5.0 | 40 | 6 |
| 4SHH 150 400 S6 | 1.5 | 4.0 | 40 | 6 |
| 4SHH 150 600 S6 | 1.5 | 6.0 | 40 | 6 |
| 4SHH 200 500 S6 | 2.0 | 5.0 | 40 | 6 |
| 4SHH 200 800 S6 | 2.0 | 8.0 | 40 | 6 |
| 4SHH 200 1000 S6 | 2.0 | 10.0 | 50 | 6 |
| 4SHH 250 800 S6 | 2.5 | 8.0 | 45 | 6 |
| 4SHH 250 1000 S6 | 2.5 | 10.0 | 50 | 6 |
| 4SHH 300 800 S6 | 3.0 | 8.0 | 45 | 6 |
| 4SHH 300 1200 S3 | 3.0 | 12.0 | 50 | 3 |
| 4SHH 300 1200 S6 | 3.0 | 12.0 | 50 | 6 |
| 4SHH 300 1500 S6 | 3.0 | 15.0 | 55 | 6 |
| 4SHH 400 1000 S6 | 4.0 | 10.0 | 45 | 6 |
| 4SHH 400 1500 S6 | 4.0 | 15.0 | 55 | 6 |
| 4SHH 400 2000 S4 | 4.0 | 20.0 | 60 | 4 |
| 4SHH 400 2000 S6 | 4.0 | 20.0 | 60 | 6 |
| 4SHH 500 1500 S6 | 5.0 | 15.0 | 55 | 6 |
| 4SHH 500 2500 S6 | 5.0 | 25.0 | 60 | 6 |
| 4SHH 600 1500 S6 | 6.0 | 15.0 | 55 | 6 |
| 4SHH 600 1500 100 | 6.0 | 15.0 | 100 | 6 |
| 4SHH 600 2000 S6 | 6.0 | 20.0 | 60 | 6 |
| 4SHH 600 2500 S6 | 6.0 | 25.0 | 65 | 6 |
| 4SHH 600 3000 S6 | 6.0 | 30.0 | 70 | 6 |
| 4SHH 800 2000 S8 | 8.0 | 20.0 | 60 | 8 |
| 4SHH 800 2000 100 | 8.0 | 20.0 | 100 | 8 |
| 4SHH 800 2500 S8 | 8.0 | 25.0 | 65 | 8 |
| 4SHH 800 3000 S8 | 8.0 | 30.0 | 70 | 8 |
| 4SHH 800 4000 S8 | 8.0 | 40.0 | 80 | 8 |
| 4SHH 1000 2000 S10 | 10.0 | 20.0 | 60 | 10 |
| 4SHH 1000 2200 100 | 10.0 | 22.0 | 100 | 10 |
| 4SHH 1000 3000 S10 | 10.0 | 30.0 | 70 | 10 |
| 4SHH 1000 4000 S10 | 10.0 | 40.0 | 80 | 10 |
| 4SHH 1000 5000 S10 | 10.0 | 50.0 | 100 | 10 |
| 4SHH 1200 3000 S12 | 12.0 | 30.0 | 75 | 12 |
| 4SHH 1200 4000 S12 | 12.0 | 40.0 | 80 | 12 |
| 4SHH 1200 5000 S12 | 12.0 | 50.0 | 100 | 12 |
| 4SHH 1400 3500 S14 | 14.0 | 35.0 | 80 | 14 |
| 4SHH 1600 3500 S16 | 16.0 | 35.0 | 80 | 16 |
| 4SHH 1600 5000 S16 | 16.0 | 50.0 | 100 | 16 |
| 4SHH 1600 7000 S16 | 16.0 | 70.0 | 120 | 16 |
| 4SHH 2000 5000 S20 | 20.0 | 50.0 | 110 | 20 |
| 4SHH 2000 7000 S20 | 20.0 | 70.0 | 130 | 20 |
