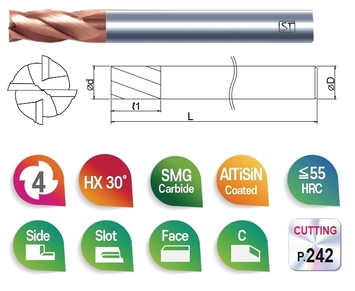

- 4SR 4F Square End-Regular
- Features
- Greater rigidity and reduced chattering through optimized geometry
- For Dry cutting and Wet cutting
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ○ | △ | ○ | ○ | ◎ | ○ | ○ | △ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|
| 4SR 100 250 S4 | 1 | 2.5 | 45 | 4 |
| 4SR 100 250 S6 | 1 | 2.5 | 45 | 6 |
| 4SR 150 400 S4 | 1.5 | 4 | 45 | 4 |
| 4SR 150 400 S6 | 1.5 | 4 | 45 | 6 |
| 4SR 200 600 S4 | 2 | 6 | 45 | 4 |
| 4SR 200 600 S6 | 2 | 6 | 45 | 6 |
| 4SR 250 800 S4 | 2.5 | 8 | 45 | 4 |
| 4SR 250 800 S6 | 2.5 | 8 | 45 | 6 |
| 4SR 300 800 S4 | 3 | 8 | 45 | 4 |
| 4SR 300 800 S6 | 3 | 8 | 45 | 6 |
| 4SR 350 800 S4 | 3.5 | 8 | 45 | 4 |
| 4SR 400 1000 S4 | 4 | 10 | 45 | 4 |
| 4SR 400 1000 S6 | 4 | 10 | 45 | 6 |
| 4SR 450 1000 S6 | 4.5 | 10 | 45 | 6 |
| 4SR 500 1300 S6 | 5 | 13 | 50 | 6 |
| 4SR 550 1300 S6 | 5.5 | 13 | 50 | 6 |
| 4SR 600 1500 S6 | 6 | 15 | 50 | 6 |
| 4SR 650 1500 S8 | 6.5 | 15 | 50 | 8 |
| 4SR 700 1600 S8 | 7 | 16 | 60 | 8 |
| 4SR 750 1600 S8 | 7.5 | 16 | 60 | 8 |
| 4SR 800 1900 S8 | 8 | 19 | 60 | 8 |
| 4SR 850 1900 S10 | 8.5 | 19 | 70 | 10 |
| 4SR 900 1900 S10 | 9 | 19 | 70 | 10 |
| 4SR 1000 2200 S10 | 10 | 22 | 70 | 10 |
| 4SR 1000 2200 S10 100 | 10 | 22 | 100 | 10 |
| 4SR 1050 2200 S12 | 10.5 | 22 | 75 | 12 |
| 4SR 1200 2600 S12 | 12 | 26 | 75 | 12 |
| 4SR 1400 2600 S14 | 14 | 26 | 80 | 14 |
| 4SR 1600 3500 S16 | 16 | 35 | 100 | 16 |
| 4SR 2000 4000 S20 | 20 | 40 | 100 | 20 |
