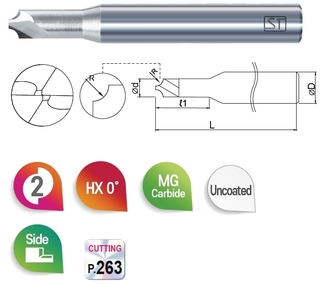

- 2CRR 2F Corner Rounding R
- Features
- Designed with wide chip space
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| △ | △ | △ | △ | ◎ | ◎ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Corner R
CR |
Dia
d |
Length of Reach
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|---|
| 2CRR 020 100 | 0.2 | 1.0 | 2.5 | 45 | 4 |
| 2CRR 030 120 | 0.3 | 1.2 | 2.5 | 45 | 4 |
| 2CRR 050 160 | 0.5 | 1.6 | 2.5 | 45 | 4 |
| 2CRR 075 300 | 0.75 | 3.0 | 5 | 45 | 4 |
| 2CRR 100 300 | 1.0 | 3.0 | 5 | 50 | 6 |
| 2CRR 150 450 | 1.5 | 4.5 | 8 | 50 | 6 |
| 2CRR 200 550 | 1.0 | 5.5 | 10 | 50 | 6 |
| 2CRR 300 800 | 3.0 | 8.0 | 10 | 60 | 8 |
| 2CRR 400 1000 | 4.0 | 10.0 | 10 | 60 | 10 |
| 2CRR 500 1200 | 5.0 | 12.0 | 10 | 70 | 12 |
