- 1FE 1F End Mill
- Features
- Flute geometry is designed for superior performance in aluminum and plastic milling applications
- Tolerance
Cutting Dia. D≤5: 0/-0.02
D>5: 0/-0.003
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| △ | △ | △ | △ | ◎ | ◎ |
가로로 스크롤하세요

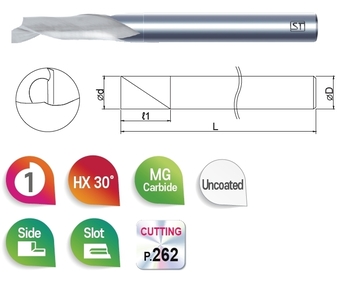

(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|
| 1FE 020 040 | 0.2 | 0.4 | 45 | 4 |
| 1FE 050 150 | 0.5 | 1.5 | 45 | 4 |
| 1FE 080 240 | 0.8 | 2.4 | 45 | 4 |
| 1FE 100 300 | 1.0 | 3 | 50 | 6 |
| 1FE 120 300 | 1.2 | 3 | 50 | 6 |
| 1FE 150 400 | 1.5 | 4 | 50 | 6 |
| 1FE 200 600 | 2.0 | 6 | 50 | 6 |
| 1FE 250 600 | 2.5 | 6 | 50 | 6 |
| 1FE 300 800 | 3.0 | 8 | 50 | 6 |
| 1FE 400 1000 | 4.0 | 10 | 50 | 6 |
| 1FE 600 1500 | 6.0 | 15 | 60 | 6 |
