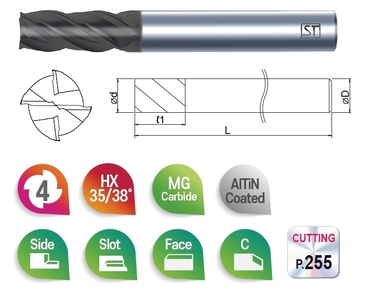

- 4SST 4F Square for Stainless Steel
- Features
- Minimize friction resistance, improve workpiece surface, and maximize tool life by applying AlTiN coating
- Reduce chattering and chipping by accurate Radius at corner.
- Designed with variable helix angle (35°~38°) and unequal divided flutes for only stainless steel.
- Faster cutting action and easy chip evacuation
- Tolerance
Cutting Dia. D≤6: 0/-0.01
D>6: 0/-0.015Corner Radius ±0.01
Recommended workpiece Material
| Carbon Steel/Alloy Steel(up to 350 HB) | Stainless Steel(up to 240 HB) | Cast lron(up to 260 HB) | Prehardened Steel(up to 50 HRc) | Hardened Steel(45 to 55 HRc) | Super Hardened Steel(55 to 68 HRc) | Nickel& Titanium Alloy |
Copper Alloy |
Aluminum Alloy |
Resin & Plastics |
Graphite |
|---|---|---|---|---|---|---|---|---|---|---|
| ○ | ◎ | ○ | ◎ | ○ | ○ | △ |
가로로 스크롤하세요
(Unit: mm)
|
EDP No.
|
Cutting Dia
d |
Length of Cut
L1 |
Overall Length
L |
Shank Dia
D |
|---|---|---|---|---|
| 4SST 100 250 50 | 1 | 2.5 | 50 | 4 |
| 4SST 150 400 50 | 1.5 | 4 | 50 | 4 |
| 4SST 200 600 50 | 2 | 6 | 50 | 4 |
| 4SST 250 700 50 | 2.5 | 7 | 50 | 4 |
| 4SST 300 1000 60 | 3 | 10 | 60 | 6 |
| 4SST 400 1200 60 | 4 | 12 | 60 | 6 |
| 4SST 500 1500 60 | 5 | 15 | 60 | 6 |
| 4SST 600 1500 50 | 6 | 15 | 50 | 6 |
| 4SST 600 2000 70 | 6 | 20 | 70 | 6 |
| 4SST 800 1900 60 | 8 | 19 | 60 | 8 |
| 4SST 1000 2200 70 | 10 | 22 | 70 | 10 |
| 4SST 1200 2600 75 | 12 | 26 | 75 | 12 |
